BLV 18-200 - blv2002

Podrobný popis

POS | Č. výrobku | Opis |

15 | 6.444-797.0 | Actuator |

8 | 4.444-128.0 | Battery rail complete 18V |

40 | 6.444-274.0 | Blow pipe bottom |

11 | 6.444-794.0 | Cable with connection |

60 | 6.444-789.0 | Hand grip left |

59 | 6.444-788.0 | Hand grip right |

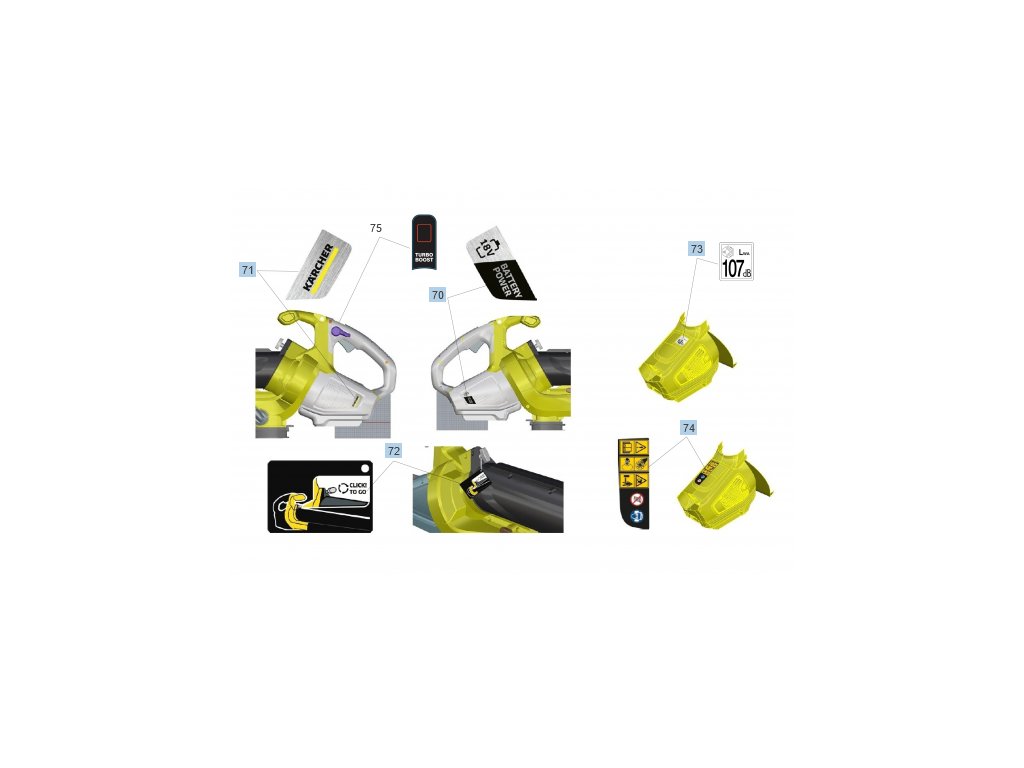

73 | 5.444-185.0 | Label 18V Lautstärke -BLV 18-200 |

70 | 5.444-182.0 | Label Battery Power 18V BLV 18-200 |

72 | 5.444-186.0 | Label instruction starter 18 V BLV 18-200 |

74 | 5.444-187.0 | Label safety information 18V BLV 18-200 |

71 | 5.444-184.0 | Label with Kaercher logo 18V BLV 18-200 |

10 | 6.444-793.0 | Lever switch |

28 | 6.444-806.0 | Locking part |

6 | 6.444-787.0 | Locking pin motor housing |

36 | 6.444-809.0 | Locking ring 7,4mm |

55 | 5.444-181.0 | Motor housing left |

56 | 5.444-183.0 | Motor housing right |

4 | 6.444-785.0 | Pipe socket |

35 | 6.444-808.0 | Plate |

24 | 6.444-803.0 | Plate change-over switch |

41 | 6.444-784.0 | Podporné kolieska |

32 | 6.444-807.0 | Pressure spring |

37 | 6.444-810.0 | Pressure spring |

13 | 6.444-795.0 | Pressure spring |

23 | 6.444-271.0 | Release button pipe BLV 18-200 |

19 | 6.444-790.0 | Rotation regulator |

14 | 6.444-796.0 | Screw |

3 | 6.444-120.0 | Screw |

42 | 6.444-781.0 | Screw |

22 | 6.444-802.0 | Screw |

61 | 6.444-550.0 | Screw M4X1.411 PH TORX T20 B |

20 | 6.444-792.0 | Selector switch |

7 | 6.444-895.0 | Set battery holder electric parts |

18 | 6.444-800.0 | Spring grounding cable |

21 | 6.444-801.0 | Spring plate |

16 | 6.444-798.0 | Spring washer |

57 | 6.444-272.0 | Suction tube above |

39 | 6.444-273.0 | Suction tube bottom |

26 | 6.444-804.0 | Switch |

12 | 6.444-561.0 | Switch |

27 | 6.444-805.0 | Threaded insert M5x0,8 |

9 | 6.444-791.0 | Trigger grey |

1 | 6.445-156.0 | vak ku BLV 18-200 |

17 | 6.444-799.0 | Washer |
